Use Case: Replace existing 48–51 V battery in electric scooter
Approximate Size Provided: Length > 17 cm, Width > 16 cm, Height > 24 cm

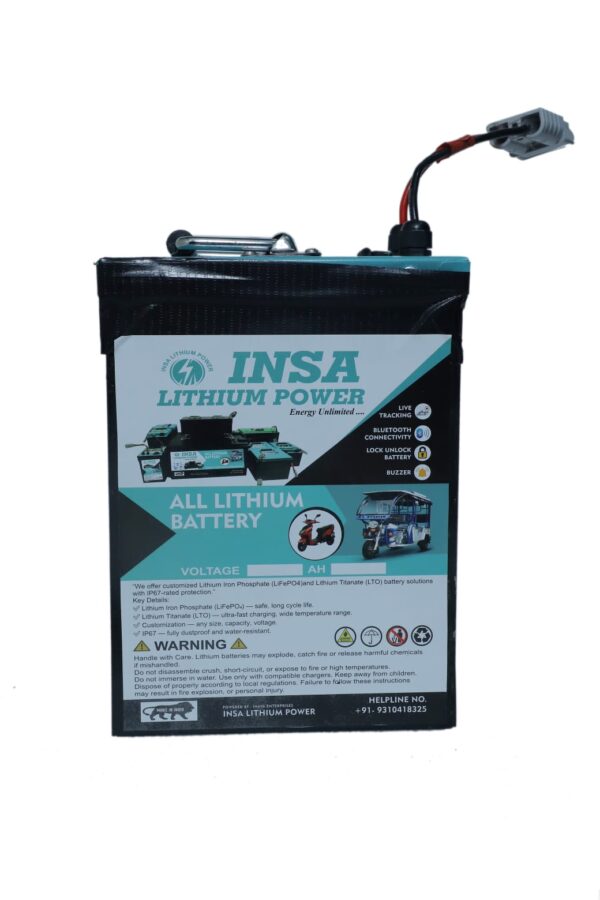

📌 Important Specs for a 60 V 30 Ah Li-ion Battery
Spec Item
Typical Value / What It Means
Nominal Voltage
60 V — Higher than your original 48–51 V battery.
Capacity
30 Ah — Determines how long your scooter runs per charge.
Energy (Watt-hrs)
60 V × 30 Ah = 1800 Wh — Higher energy means more range.
Chemistry
Li-ion (e.g., 18650 or 21700 cells) — lighter & longer life than lead acid.
Continuous Discharge Current
Should support motor draw — usually 30–60 A+ for scooters.
Peak Discharge Current
60–100 A+ depending on motor size.
Cycle Life
800–1500 cycles typical for good quality Li-ion.
BMS (Battery Management System)
Must include: over-charge, over-discharge, short-circuit, temperature protection.
📐 About Your Size Requirement
You specified: L > 17 cm, W > 16 cm, H > 24 cm
That’s reasonable for a 60 V 30 Ah pack, but actual size will vary depending on:
Cell type (21700 cells pack is more compact than 18650)
Case design
BMS and wiring space
Most 60 V 30 Ah packs are roughly in that ballpark, but always confirm exact dimensions before buying.
🔌 Compatibility Notes
Voltage Step-Up/Down:
Your scooter is originally designed for ~48–51 V.
Fitting a 60 V battery increases voltage, which can:
Increase motor speed
Increase stress on controller & motor
Potentially require a controller that supports 60 V systems
Controller Check:
Ensure your scooter’s controller supports 60 V input. If not:
You may need to upgrade the controller
Or use a voltage regulator (not ideal for motor systems)
⚡ Safe Charging & BMS
A proper Li-ion battery must have a BMS that:
✔ Balances cells ✔ Protects against over-charge & over-discharge ✔ Prevents over-current & short circuit ✔ Monitors temperature
Charger requirements:
Must match 60 V nominal battery
Voltage cutoff around 67.2–67.8 V (for 60 V Li-ion)
Proper current — typically 6 A to 10 A for a 30 Ah pack
🧰 What to Tell a Supplier/Builder
When ordering or building a custom pack, give them:
Voltage: 60 V
Capacity: 30 Ah
Max Continuous Discharge: ≥ 10–40 A
Peak Discharge: ≥ 50–100 A
Physical Size Constraint:
L > 17 cm
W > 16 cm
H > 24 cm
Required Connector Type: (e.g., XT60 / Anderson / bolt tabs)
✔ Battery fits inside your scooter battery compartment ✔ Battery voltage is compatible with controller ✔ Battery has quality BMS ✔ Correct charger available ✔ Proper mounting & insulation for safety
